Time Synced Precision
Automatically synced to the microsecond through a single topside data stream.

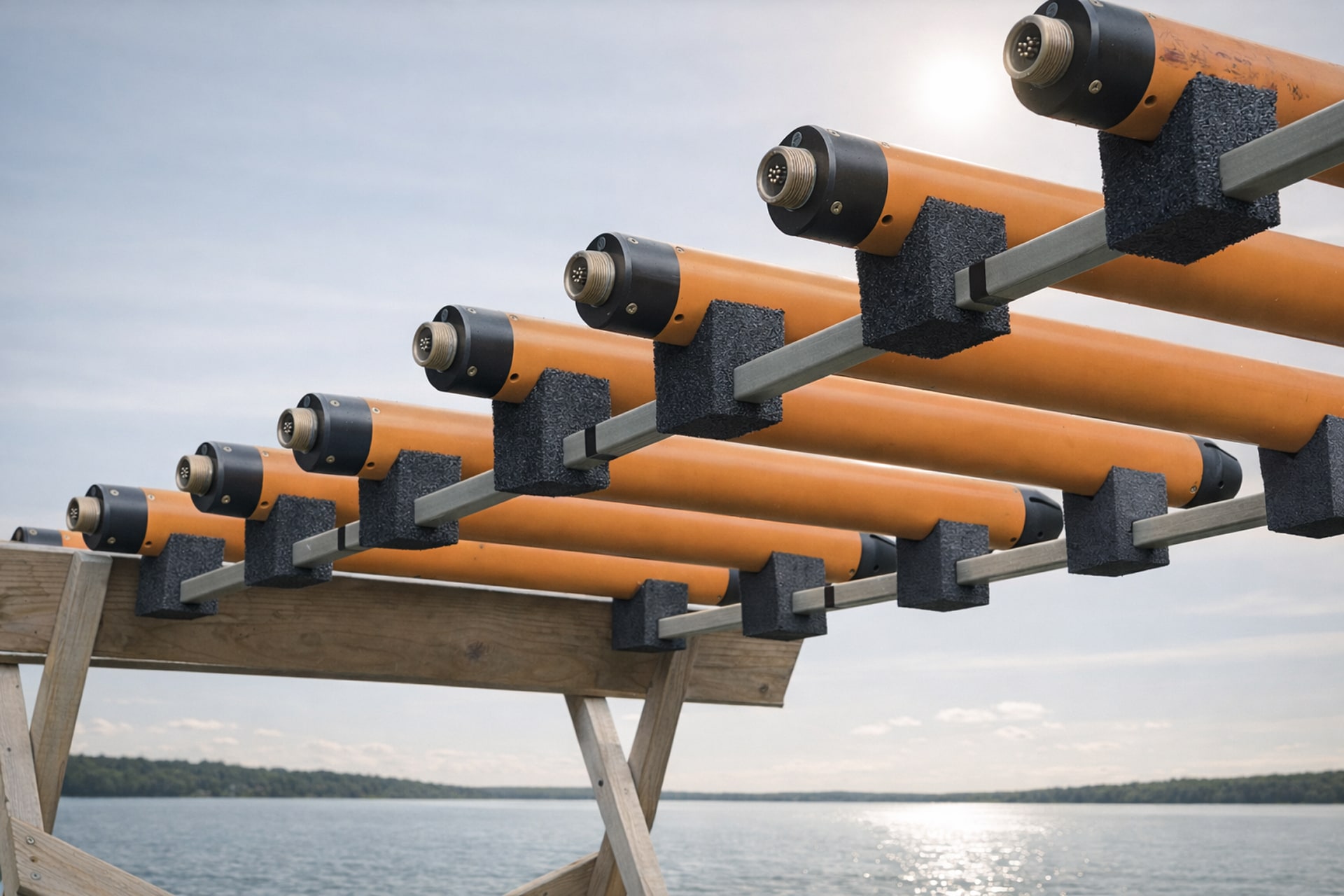

Flexible Precision
Stockpile a few dozen nodes, grab however many a survey’s parameters may need, connect them and “go.”
Every node is identical and interchangeable. Instead of humans micro-managing sensor relationships, they figure it out independently. One of the sensors takes charge, coordinates data from the network and sends it to the humans topside.
If you add another sensor, the sensor in charge recognizes and integrates the new sensor.
Less downtime can lower on-vessel equipment setup from half a day to half an hour.
Build Quality
Specialization matters

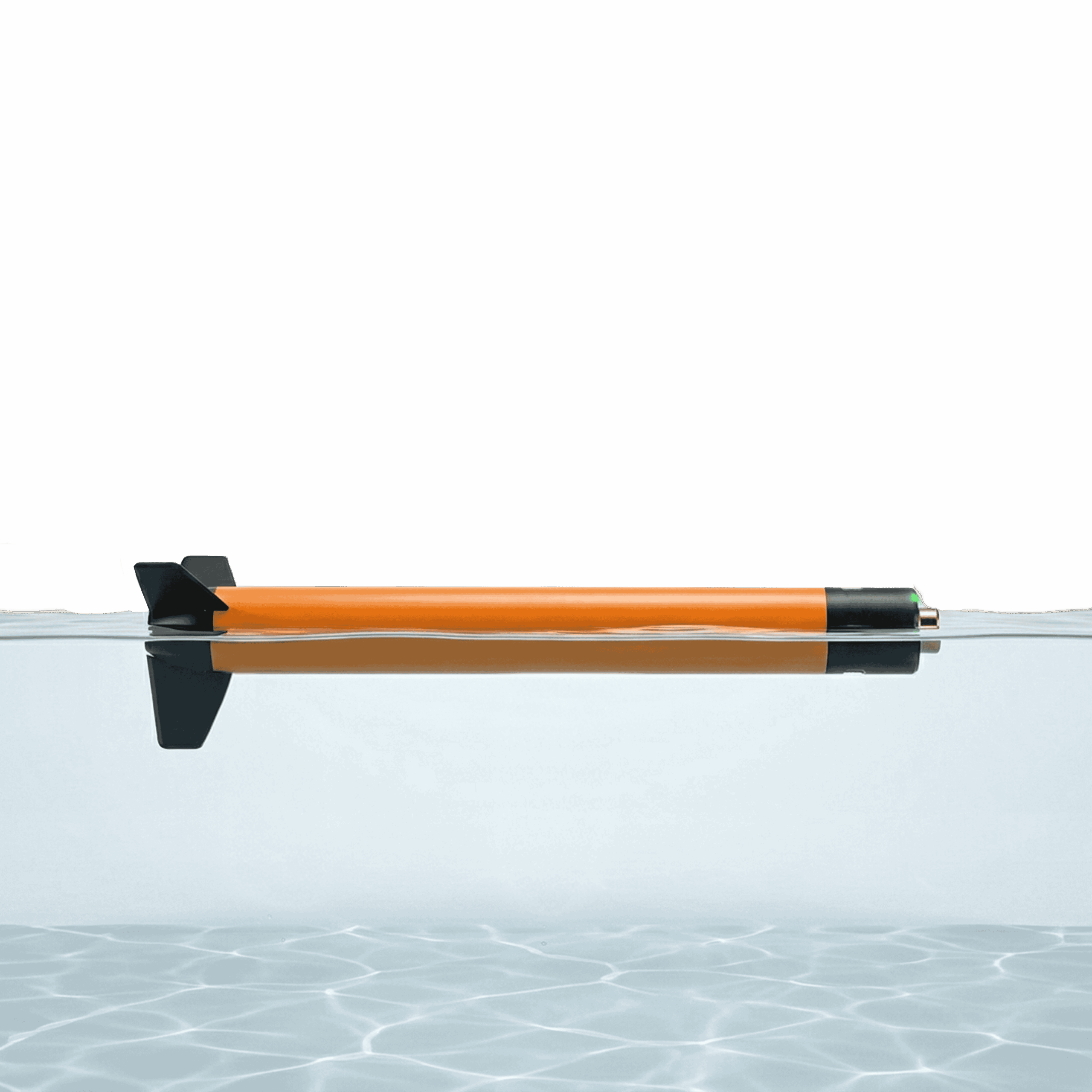

Neutrally-Buoyant for Any Deployment
Conventional or unmanned, above and below the surface.
Integrated Tracking
No messy attachments
Ultra Compact

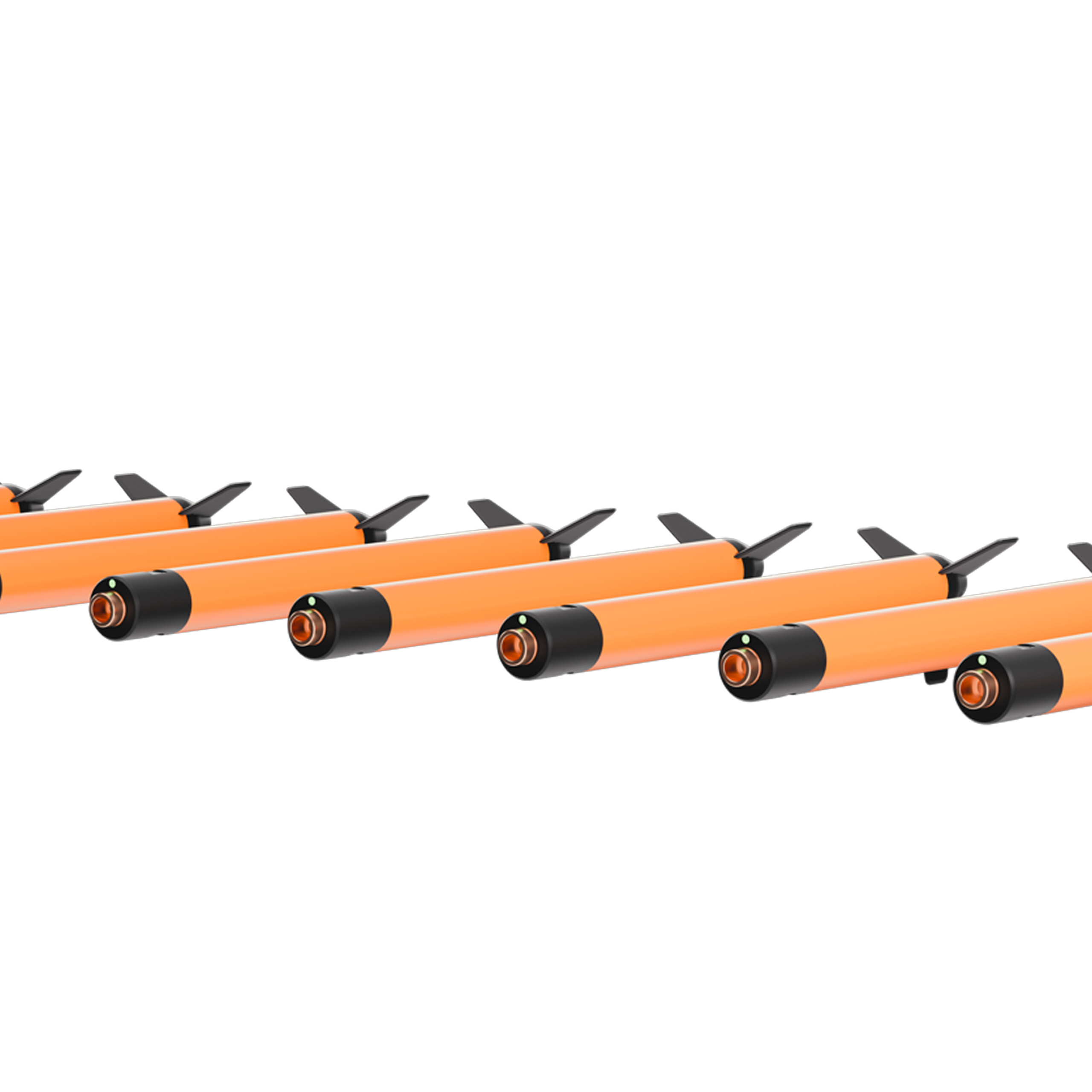

Smaller sensors can reduce an array’s size and weight by a factor of 4-5.

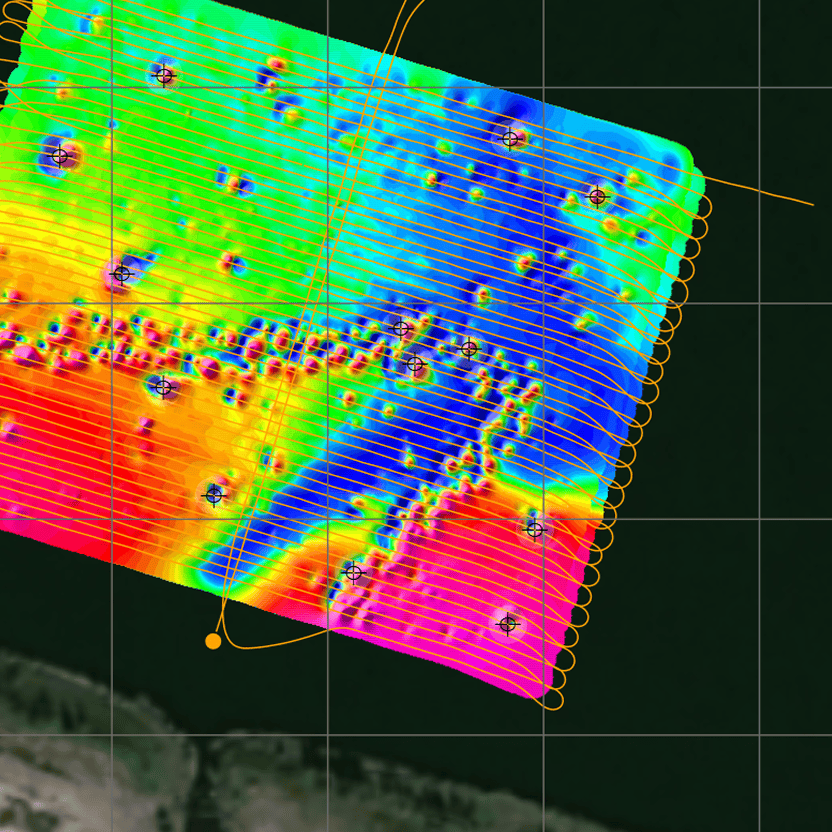

More Definition
Get sharper data with faster sampling rates and tighter survey tracks with more compact mags.
Make Synapse Array a perfect fit for your application.
Size + Weight
Magnetometer
Length: 89 cm
Diameter: 7.6 cm (tube), 24 cm (fin)
Weight in air: 3.5 kg
Weight in water: Neutral
With Altimeter
Combined length: 94 cm
Combined weight in air: 4.7 kg
Weight in water: Neutral
Sensor Options
Tuned Overhauser for absolute accuracy
(Coming Soon)
Operating Zones: Worldwide
Measurement Type: Scalar
Absolute Accuracy: 0.1 nT
Sensitivity: 0.01 nT (0.02 nT optional)
Counter Sensitivity: 0.001 nT
Resolution: 0.001 nT
Dead Zone: NONE
Heading Error: NONE
Temperature Drift: NONE
Gradient Tolerance: > 10,000 nT/m
Range: 18,000 – 120,000 nT
Sampling Rates: 4 Hz – 0.1 Hz

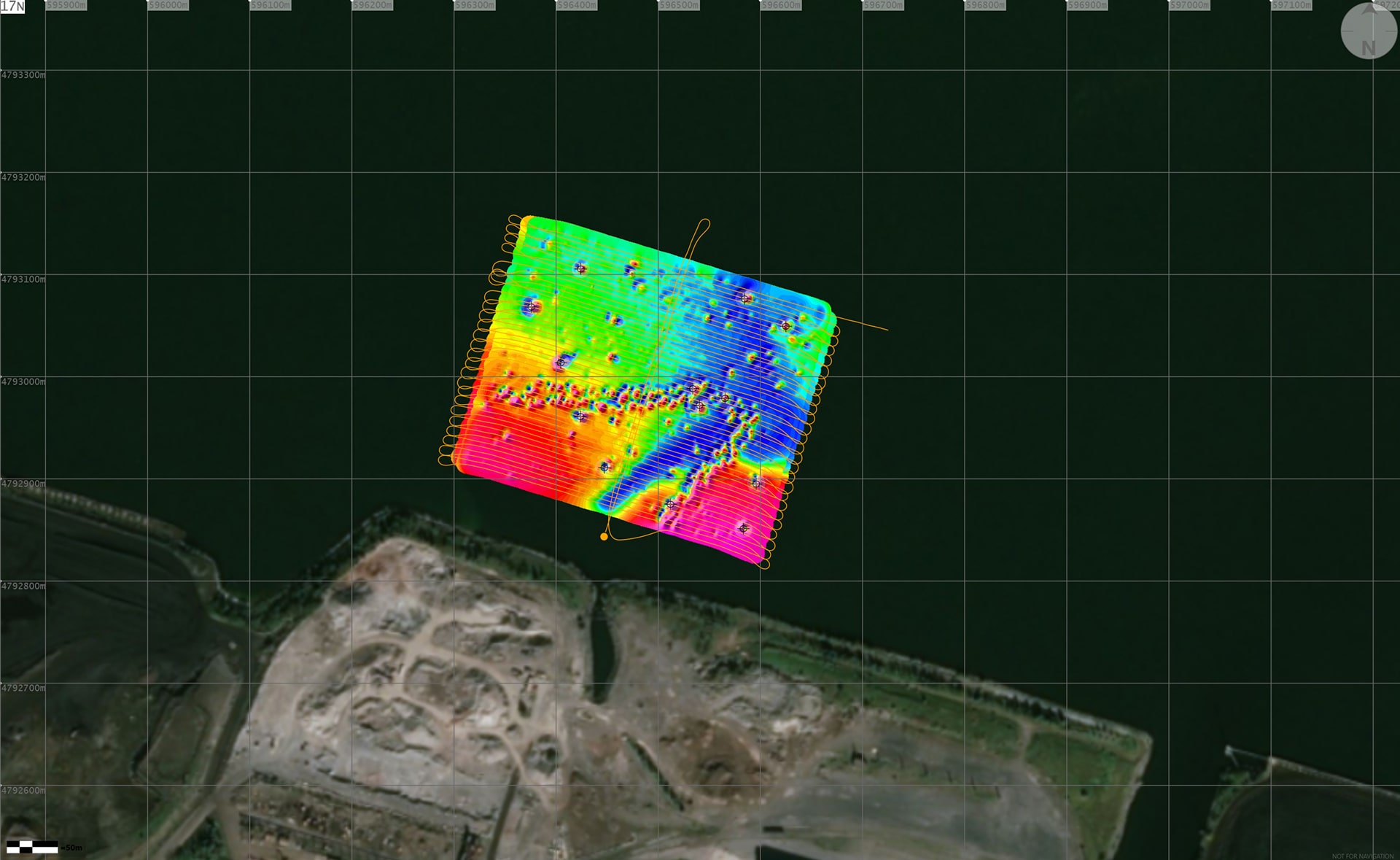

Rubidium laser pumped for rapid sampling
Operating Zones: Worldwide
Measurement Type: Scalar
Absolute Accuracy: TBD
Sensitivity: 0.01 nT
Resolution: 0.001 nT
Dead Zone: 1 Zone (+\- 6° from center) Sensor can be easily rotated for worldwide operation
Gradient Tolerance: > 10,000 nT/m
Range: 18,000 – 120,000 nT
Sampling Rates: up to 20 hz
Operation
Operating Zones: Worldwide
Max Depth Rating: 1000m
Power Consumption: 4.5 W per node 7 W with altimeter and IMU
Power Supply: 24 VDC (120-240 VAC compatible) (Acceptable range 9-30 VDC)
Data
Interface: USB or RS232
Communication: WiFi web interface (access point mode) RS-232, 9600 bps
System
Integrated

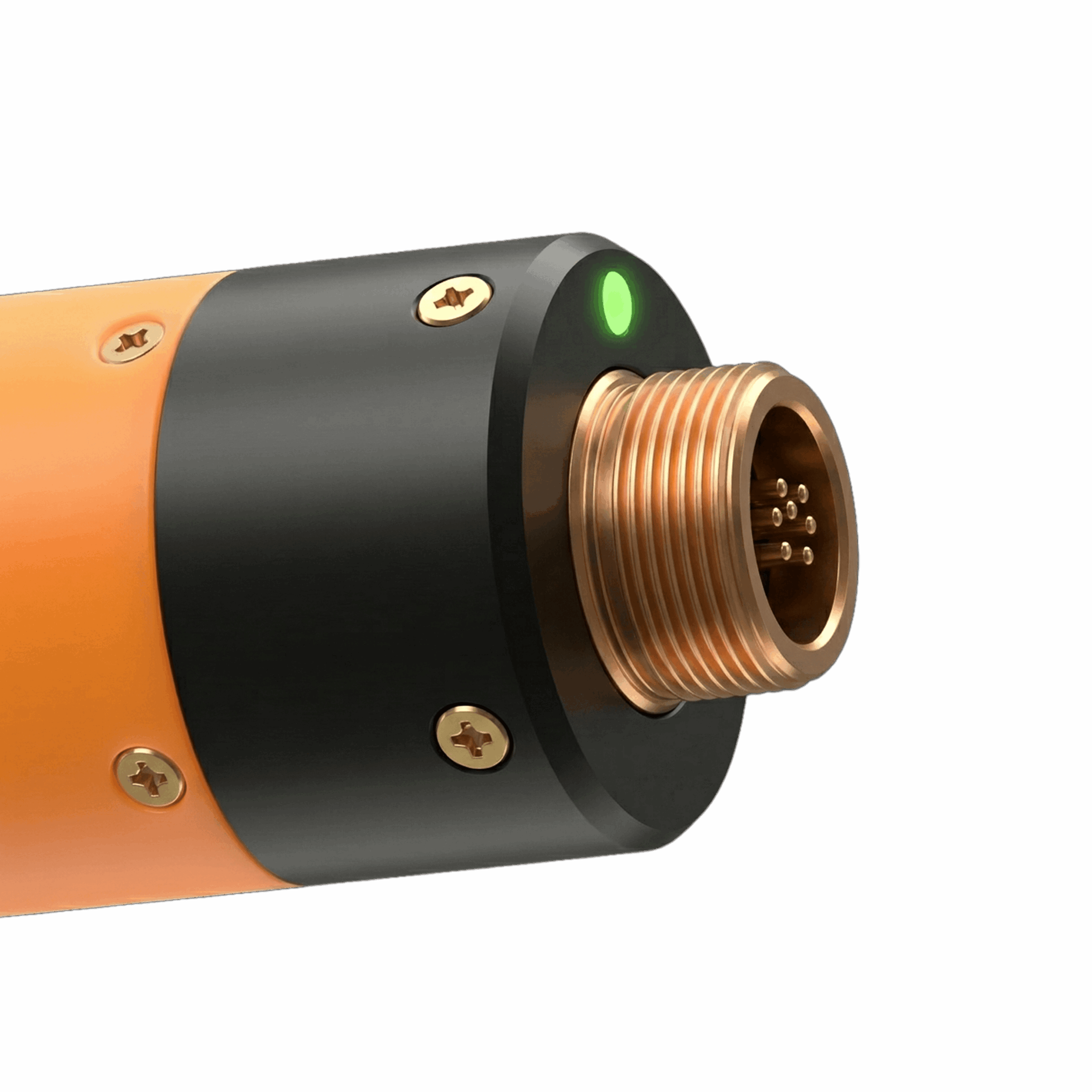

Network Status LED
Leak Detector
Optional
Altimeter: Narrow beam 200 kHz, 0.01 m resolution, 100 m range
Tilt IMU: Full Euler-angle attitude solution, 0.01° resolution (pitch, roll, yaw)
Pressure/Depth sensor
Cable Options
Standard Tow Cable
(FSK)
Conductor: Twisted pair (2)
Strength Member: Vectran Braid
Breaking Strength: 2,700 kg
Working Load: 450 kg
Outer Diameter: 10.4 mm
Weight in Air: 120 g/m
Weight in Water: 30 g/m
Cable Termination: Field Replaceable
Data interface: FSK
Material: Yellow PU
Ideal for: Heavy duty towing over FSK
Standard Tow Cable
(RS-232)
Conductor: Twisted Quad (4)
Strength Member: Aramid Braid
Breaking Strength: 2000 kg
Working Load: 340 kg
Outer Diameter: 10.2 mm
Weight in Air: 115 g/m
Weight in Water: 31 g/m
Cable Termination: Field Replaceable
Data interface: RS-232 (or FSK)
Material: Light Blue PU
Ideal for: Heavy duty towing over RS-232
Marine Tow Cable
(Light Duty)
Conductor: Twisted Quad (4)
Strength Member: Vectran Braid
Breaking Strength: 365 kg
Working Load: 75 kg
Outer Diameter: 6.9 mm
Weight in Air: 57 g/m
Weight in Water: 18 g/m
Cable Termination: No
Data interface: RS-232 or (FSK + CAN)
Material: Black PU
Ideal for: Light-med duty towing (AUV, ASV, SSS, H-Grad)
Integration Cable
(EIVA Integration)
Conductor: 3 Twisted Pair, 3 Single – (9)
Strength Member: Aramid Braid
Breaking Strength: 360 kg
Working Load: 70 kg
Outer Diameter: 0.97 cm
Weight in Air: 113 g/m
Weight in Water: 30 g/m
Cable Termination: No
Data interface: RS-232 + CAN
Material: Black PU
Ideal for: EIVA Scanfish Katria intergration
Software
Other compatible software: Hypack, Geosoft, Golden software, Seebyte, Fugro, Teledyne, Chesapeake Technology, Organic Imaging Consultants
Quick Configurations

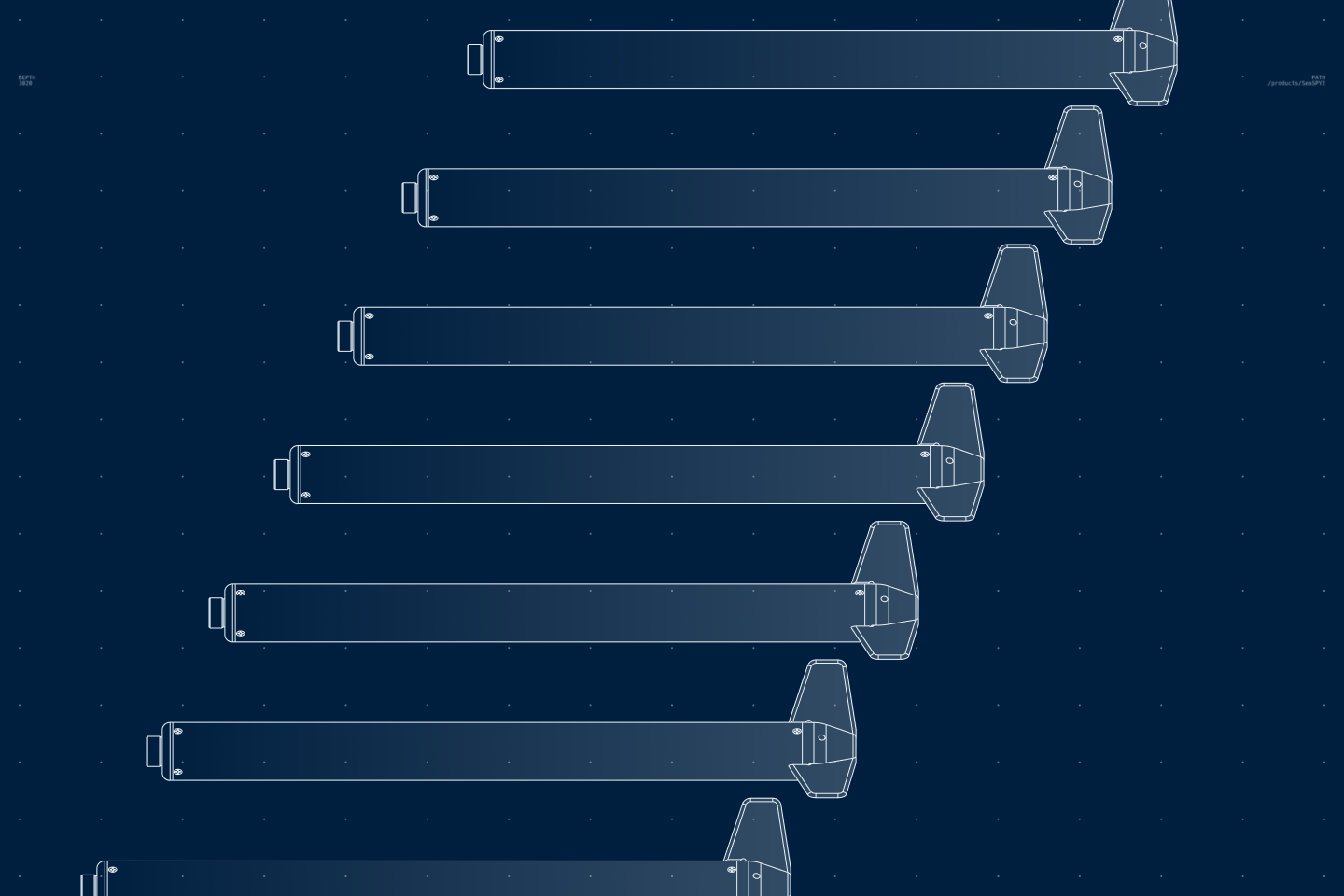

Magnetometer Only: Magnetometer Sensor

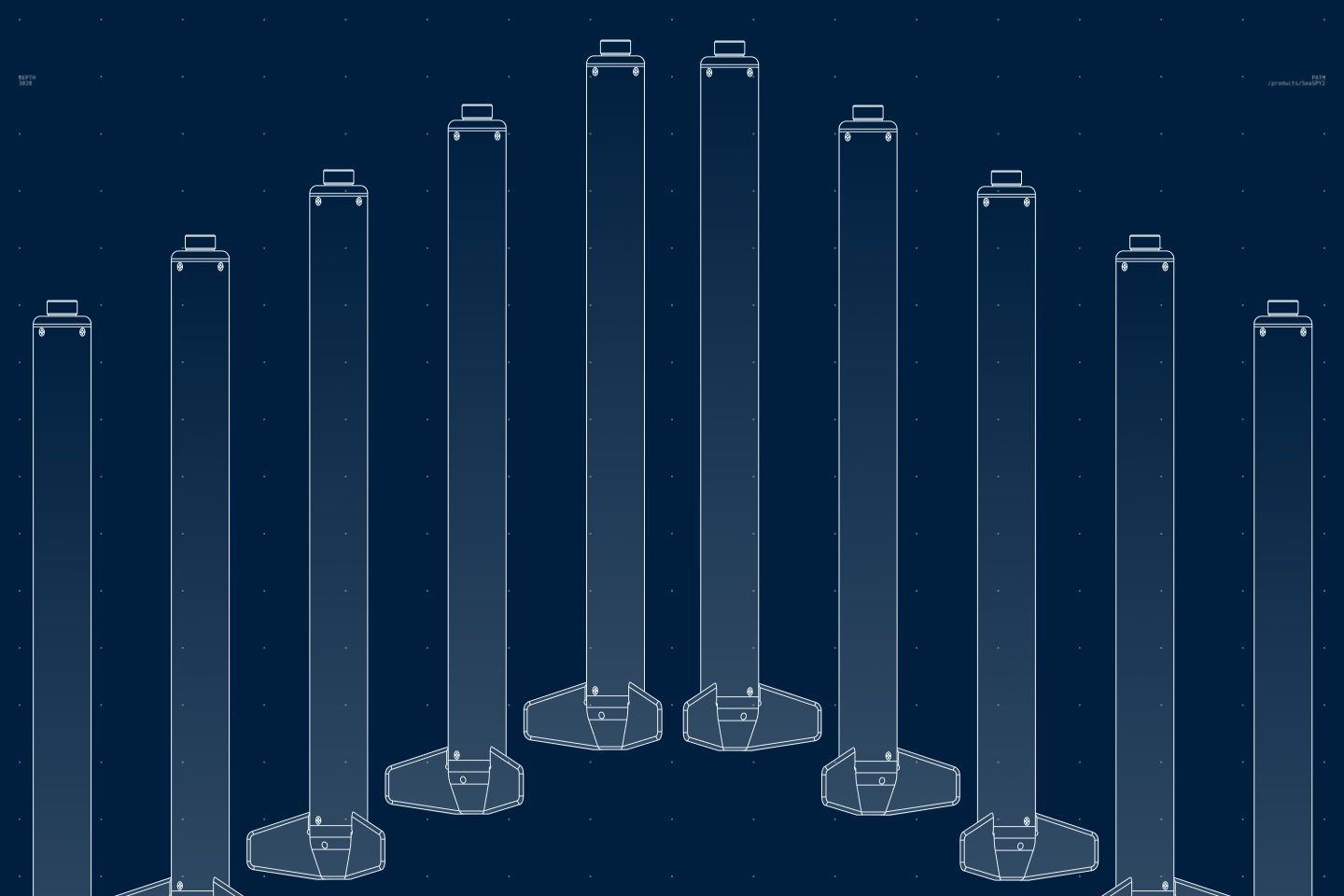

Combined: Magnetometer, Pressure, Altimeter Sensors, and Tilt IMU Sensors

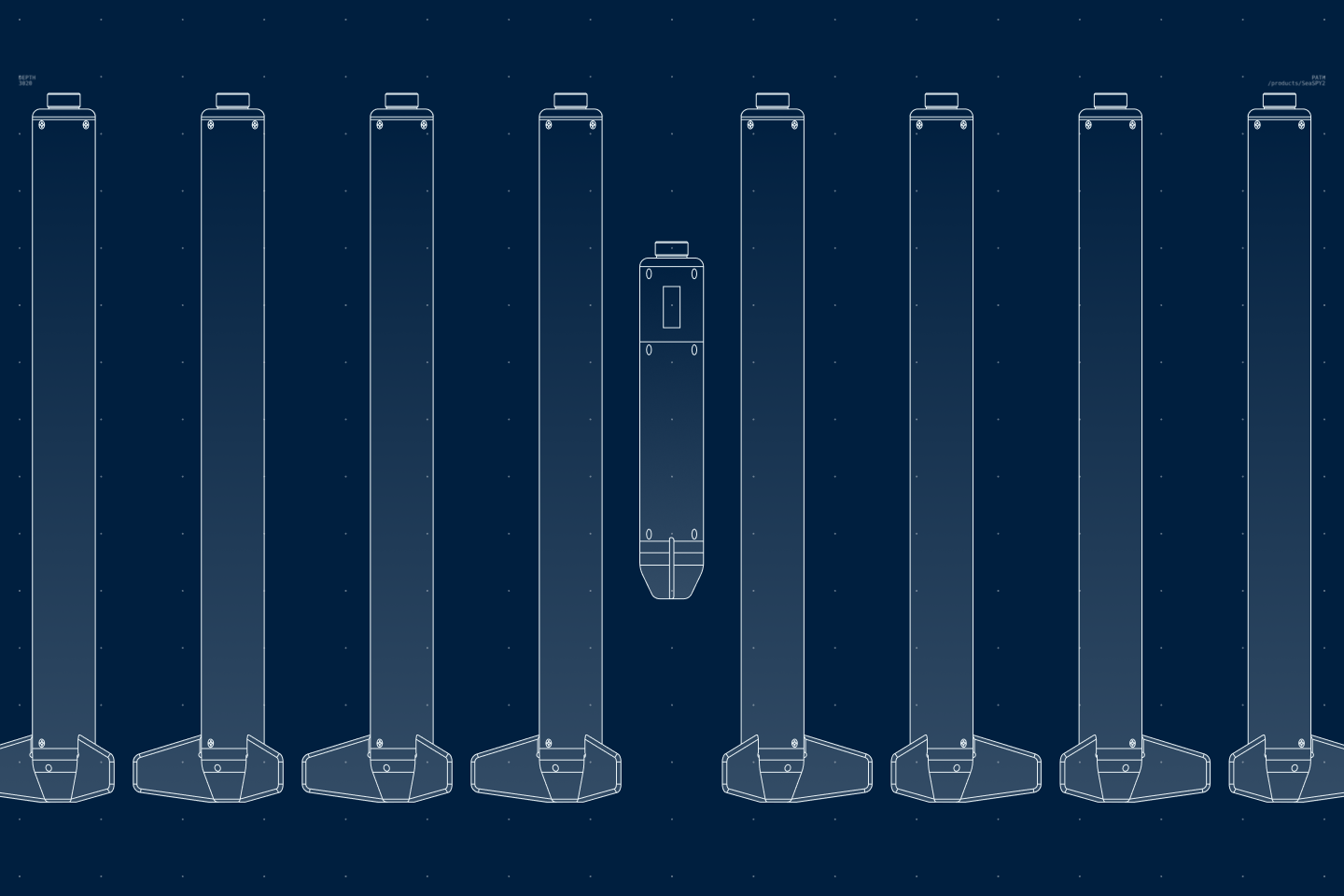

Accessory Towfish: Pressure, Altimeter, and Tilt IMU Sensors
Required Accessories
Reusable Shipping Case: 1.21 m / 42 cm / 25 cm (Shipping weight: 28.2 kg)
24V Universal AC Power Supply OR Battery Clip Cable (2 m)
USB or RS-232 cable
Add-Ons
Accessory Towfish
Pressure-depth, Altimeter, and Tilt Inertial Measurement Unit (IMU)
Larger pressure housing
Increased depth rating
